HEXaFLITE® Flying Theater – The future of entertainment

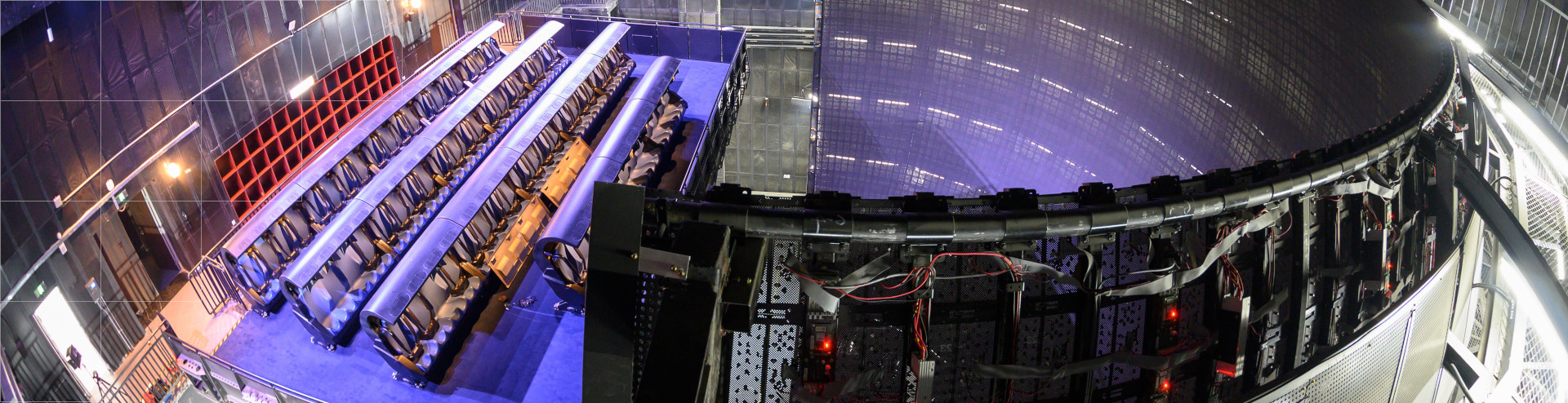

Simtec's HEXaFLITE® Flying Theater Ride represents the new generation of flying theater indoor simulator attractions. With a breathtaking initial movement the visitors are tilted in front of the movie and experience a high dynamic fully immersive simulator ride.


A spherical dome projection screen with up to 26m diameter is set around the 6-degrees-of-freedom (6-DOF) tilted motion platform. Linear accelerations with up to +/-20° around all axes provide a realistic flying experience for the visitors.


The advantage of the new HEXaFLITE® design is the ease of entering and leaving the motion platform.


A special design of the motion system makes it possible to enter the platform in horizontal position, take a seat and close the shoulder bar. From this position the motion platform is tilting down in front of the screen. The visitors' feet are lifted in the air and all of them have seats just in front of the screen feeling like individuals flying in the scenery of the movie - a unique sensation. With the extensive dynamics and movement in all directions and around all axes visitors will have a perfect immersion with the content of the movie. The attraction story line can be based on any kind of vehicle which is taking the visitors on an amazing journey. It can be a real life action thrill or a computer animation with all the exciting effects possible with this technology. Dynamic sequences can be mixed with soaring elements in the movie.


As a leading Flying Theater supplier, Simtec offers HEXaFLITE® as a turn-key system including the ride system, screen, projection system, audio-video system and even movie content if requested. Versions with 16, 20, 40, 72 and 80 seats are available. Ask us for your special design. Special effects for wind, scent, spritz and vibration are an option.



Short description

  • 6-DOF (degrees-of-freedom) motion platform, also turn around longitudinal, lateral und vertical
  • Visitor seats on an open platform with railings around the platform, safety shoulder bar with redundant locking
  • Spherical dome projection screen with 180° horizontal by 110° vertical visual field of view
  • Breathtaking initial movements from docking position to operation position
  • Horizontal docking position and vertical operational position
  • Optional special effects: wind, scent, spritz and vibrations



  • German TÜV approval according European ride standard EN 13814
  • Chinese CSEI approval



  • 16, 20, 40, 72 oder 80 seats
  • Capacity 160 - 800 visitors per hour (with 6 minutes cycle time and 3,5 minutes movie)
